DESIGN RESOURCES
Technical Drawings, Specs & Installation Resources
Everything architects, engineers, and building contractors need to design and prep openings for a PowerLift hydraulic door. Browse by product below. Contact us anytime for clarification.
Single-Source Accountability
We design, build, deliver, install, and support every door — no subcontractors assembling doors they didn't build.
One All-Welded Unit
The industry's only single-unit, all-welded door: no bolts or screws that fatigue and loosen over time.
Zero Maintenance
Lower building loads and the best weather seal in the business, with zero maintenance on most doors.
Concealed Cylinder
Generic Detail Drawings
Specifications, BIM Files & Technical Data Sheet
Customer & Contractor Info
Innovation begins before installation. Review these details when preparing openings for new or retrofit concealed cylinder installations — including trim and cladding tips. Full ADA compliance is easy with our no-threshold wall and door systems.

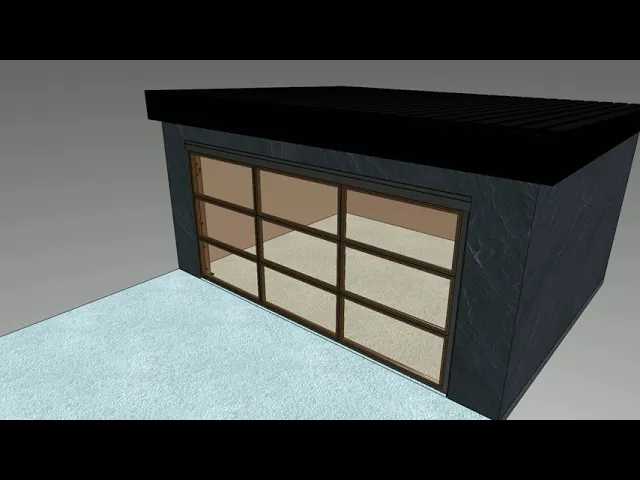

Small Frame Concealed Cylinder Installation Animation

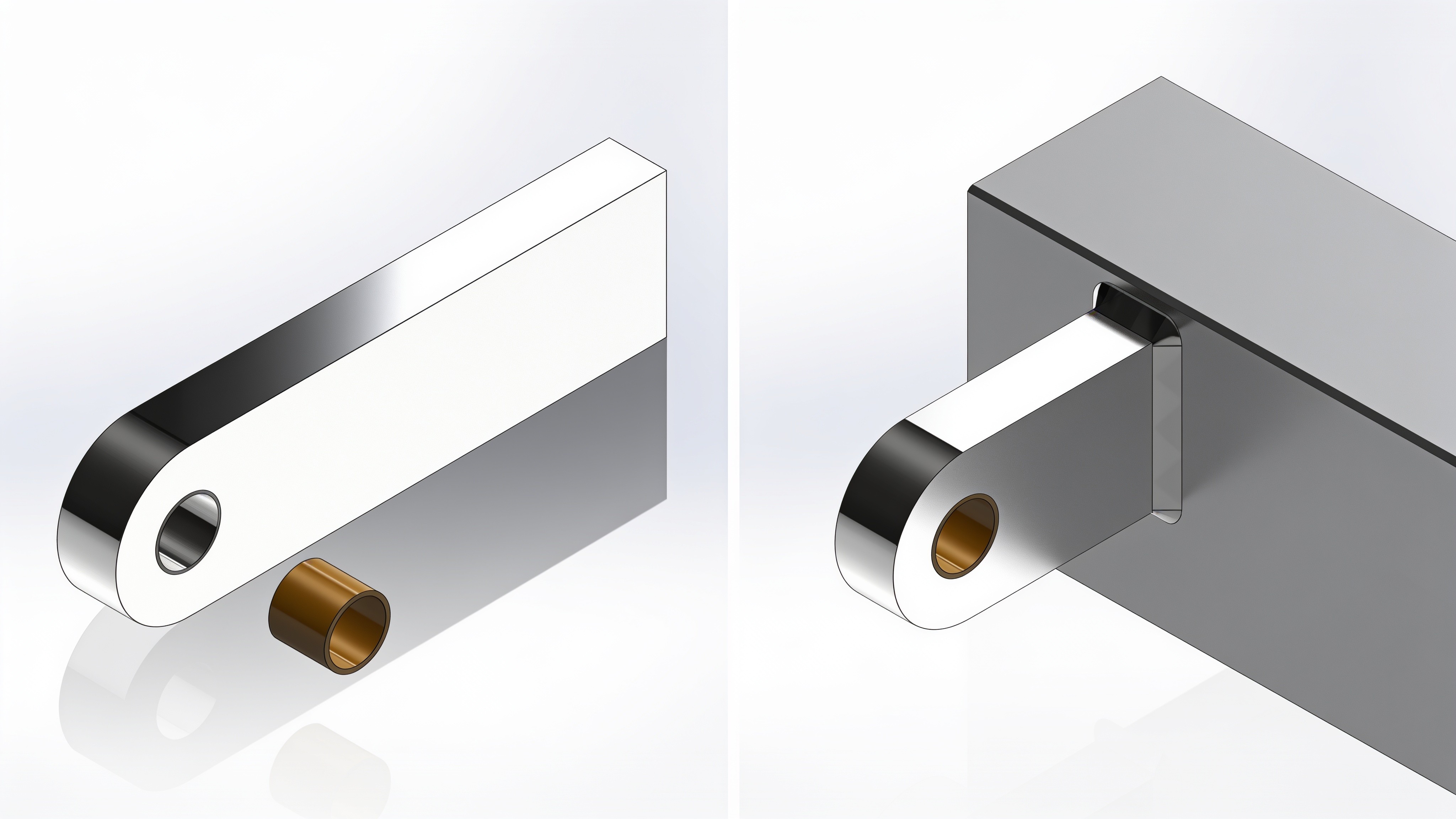

The PowerLift Hinge: Strength & Safety
Hinge blades are surrounded by, supported inside, and welded through the entire header tube.
PTFE (Teflon)-infused bronze bushings give permanent lubrication and silent operation.
Ends the risk of greasing hinges 12’–30’ in the air.
Hinge life expectancy measured in centuries, not months or years.
